GeoVISION™
Borehole Video Systems

Robust and reliable inspection technology engineered for the most demanding subsurface environments. Customizable for applications ranging from 1-inch piezometer tubes to 10-foot diameter mine shafts.

Explore Systems Request Quote
20mm Nano Camera
Dual Scan Technology
2000ft Depth Capacity
High-Intensity LEDs
Ruggedized Stainless Steel
Joystick Control
20mm Nano Camera
Dual Scan Technology
2000ft Depth Capacity
High-Intensity LEDs
Ruggedized Stainless Steel
Joystick Control
CAMERAS

Robust, Reliable Technology

GeoVISION™ Borehole Video Systems from Allegheny Instruments are customizable to any application, from 1-inch piezometer tubes to 10-foot diameter mine shafts. Manual or portable electric winch systems with up to 2,000 feet (600 meters) of cable to visually inspect any type of drill hole or boring into the earth – water wells, environmental monitoring wells, geotechnical borings, caisson foundations, drilled shafts, and shallow oil & gas wells.

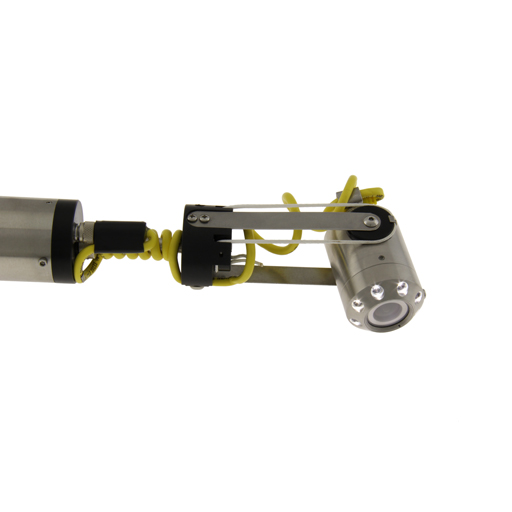

Borehole Camera Systems
WINCHES

Winch & Base System Options

Three separate winch/base system options provide alternatives based on project requirements and budget. The Heavy Duty system includes a rugged steel hand winch with optional cable lengths of 325, 650, or 1000 feet (100, 200, or 300 meters). The Light Duty system offers a lightweight alternative for remote sites and bore depths less than 325 feet (100 meters). The Deluxe electric winch offers variable speed up/down control, and contains the joystick to operate the Dual Scan Micro camera and Motorized Pan and Tilt setup. Cable length options for the Deluxe winch are 325, 650, 1000, 1650, or 2000 feet (100, 200, 300, 500, or 600 meters).

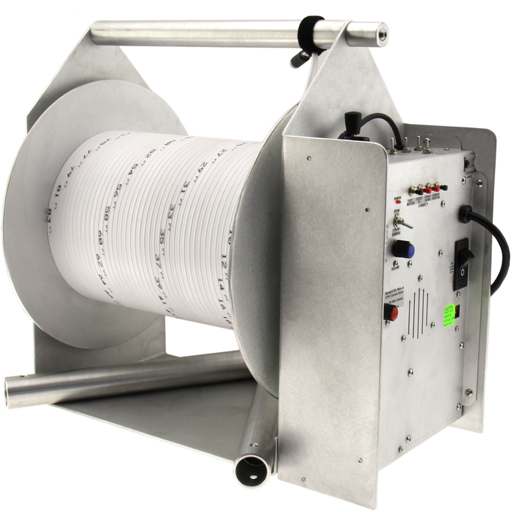

Deluxe Winch System
COMPACT DESIGN

Size Matters in Deep Inspections

As pioneers in portable downhole video systems, we engineer our cameras to be exceptionally compact without compromising on performance.

20mm Nano Camera

The smallest in our fleet, designed specifically for piezometer tubes and well inspections where pump removal is not an option.

Dual Scan Micro

At only 1⅛" diameter, it remains the industry's smallest controllable sideview camera, offering unmatched perspective in tight boreholes.

Fishing Operations

Ideal for critical retrieval tasks. Its slim profile allows operators to navigate around obstructions to locate and recover lost tools.

ADVANTAGES

Engineered for Excellence

Our systems are built to provide clarity and reliability where others fail.

Precision Optics

Specialized lenses provide optimal video images across a wide range of well diameters, ensuring maximum field of view without fish-eye distortion.

Ruggedized Cables

Polyethylene-sheathed cables with copper-wrapped steel wires for high tensile strength. Modular design allows easy field replacement and upgrades.

Joystick Control

Our Deluxe winch system offers intuitive joystick control for 360° rotation and pan/tilt movements, providing complete comprehensive inspections.

Versatile Power

Operates on standard 12V DC portable power, making it the ideal solution for remote field work and off-grid inspections.

Extended Reach

Standard and Deluxe winch systems support cable lengths up to 2,000 feet (600m), allowing for deep well and mine shaft exploration.

Depth Encoding

Integrated depth counters provide real-time distance data overlays on the video signal for precise identification of subsurface features.

Ready for a Deeper Look?

Consult with our experts to find the perfect GeoVISION™ configuration for your specific borehole requirements.
